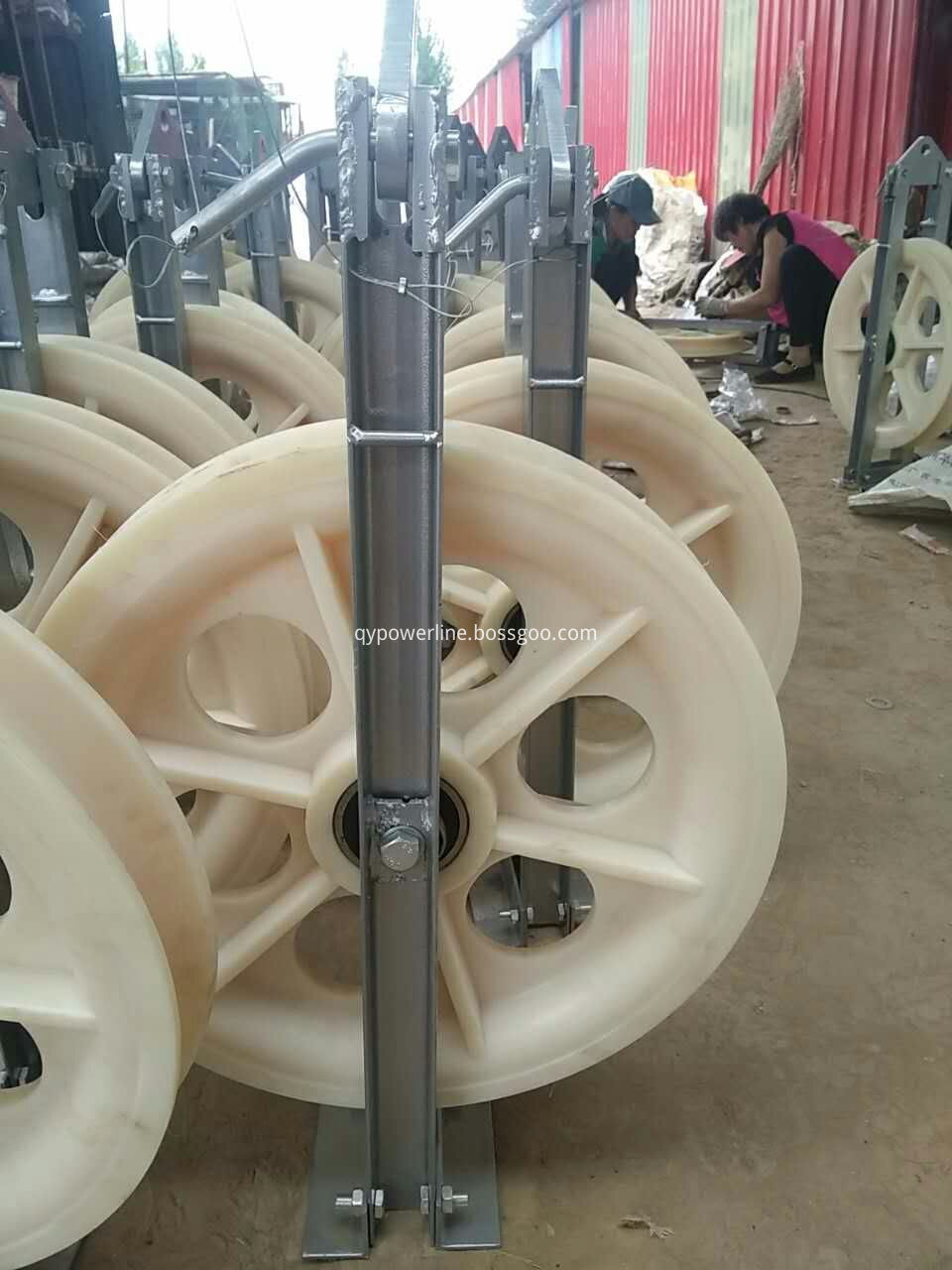

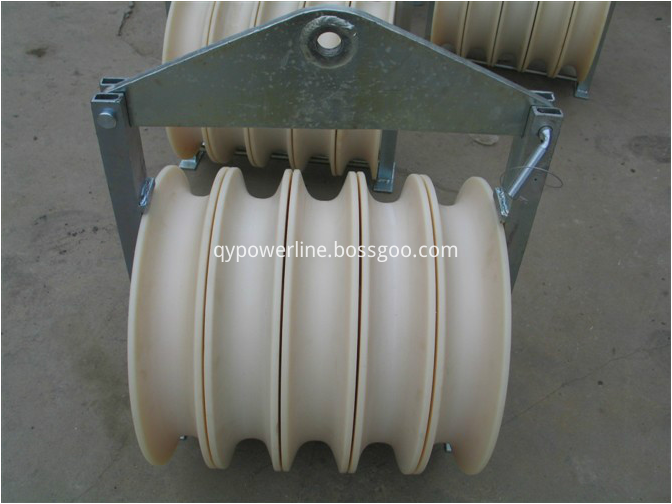

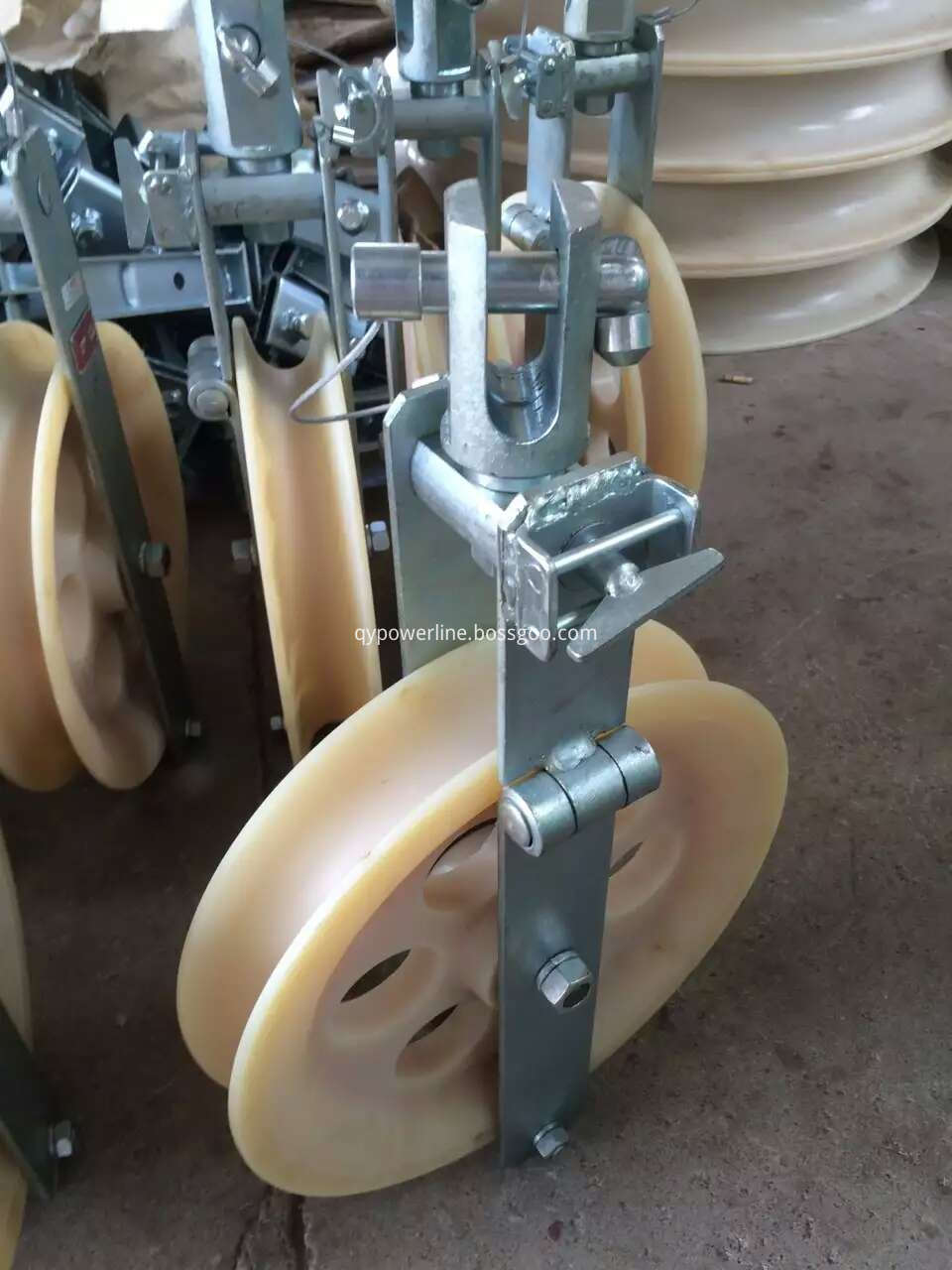

Stringing cable sheave pulley
Stringing Pulley Block,Stringing Cable Block,Aluminum Pulley Block,Stringing Pulley,Stringing Block,Stringing Cable Pulley,Conductor Pulley,Cable Pulley,Cable Block,Cable Roller,Cable Block,Conductor Block.
Description of Stringing cable sheave pulley :
1. We manufacture a lot of models cable pulling block for different uses in the overhead
transmission line construction.
2. They have are used to support conductors, OPGW, ADSS, communication lines.
3. The sheave of the pulley blocks are made from high strength MC nylonor aluminum materials and
the frame of blocks are made of galvanized steel.
4. Cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting,
and long service life.
Remarks: All kinds of pulley blocks can be manufactured according to the customers's requirements.
Technical Parameters:
Product NO. | Model | Sheave | Rated Load (KN) | Out-Dia*In-Dia*Width (mm) | ACSR (mm2) | Weight (kg) | Remark |
10065 | XH1-508*75A | 1 | 20 | 508*408*75 | ≤400 | 25 | Aluminum |
10066 | XH1-508*75N | 1 | 20 | 508*408*75 | ≤400 | 16.5 | MC Nylon |
10067 | XH3-508*75A | 3 | 40 | 508*408*75 | ≤400 | 58 | Aluminum |
10068 | XH3-508*75N | 3 | 40 | 508*408*75 | ≤400 | 38.5 | MC Nylon |
10069 | XH5-508*75A | 5 | 60 | 508*408*75 | ≤400 | 88 | Aluminum |
10070 | XH5-508*75N | 5 | 60 | 508*408*75 | ≤400 | 55.5 | MC Nylon |
10071 | XH7-508*75A | 7 | 100 | 508*408*75 | ≤400 | 150 | Aluminum |
10072 | XH7-508*75N | 7 | 100 | 508*408*75 | ≤400 | 105 | MC Nylon |
10073 | XH1-660*100A | 1 | 20 | 660*560*100 | ≤500 | 45 | Aluminum |
10074 | XH1-660*100N | 1 | 20 | 660*560*100 | ≤500 | 34.5 | MC Nylon |
10075 | XH3-660*100A | 3 | 40 | 660*560*100 | ≤500 | 113 | Aluminum |
10076 | XH3-660*100N | 3 | 40 | 660*560*100 | ≤500 | 78 | MC Nylon |
10077 | XH5-660*100A | 5 | 60 | 660*560*100 | ≤500 | 152 | Aluminum |
10078 | XH5-660*100N | 5 | 60 | 660*560*100 | ≤500 | 120 | MC Nylon |
10079 | XH7-660*100A | 7 | 100 | 660*560*100 | ≤500 | 226 | Aluminum |
10080 | XH7-660*100N | 7 | 100 | 660*560*100 | ≤500 | 186 | MC Nylon |
10081 | XH1-830*110N | 1 | 30 | 830*710*110 | ≤630 | 30 | MC Nylon |
10082 | XH3-830*110N | 3 | 60 | 830*710*110 | ≤630 | 118 | |
10083 | XH5-830*110N | 5 | 120 | 830*710*110 | ≤630 | 180 | |
10084 | XH7-830*110N | 7 | 130 | 830*710*110 | ≤630 | 290 | |
10085 | XH1-916*110N | 1 | 50 | 916*800*110 | ≤800 | 45 | MC Nylon |
10086 | XH3-916*110N | 3 | 110 | 916*800*110 | ≤800 | 140 | |
10087 | XH5-916*110N | 5 | 150 | 916*800*110 | ≤800 | 235 | |
10088 | XH7-916*110N | 7 | 180 | 916*800*110 | ≤800 | 335 |
|
|
|
|
