Anti-twisting Steel Wire Rope
Name: Mr Frank Yu
Tel: +86-138 1318 6357
Fax: +86-0514-87261716
E-mail: frank@qypowerlinetools.com
Skype: yusong0627
QQ: 1376828576
Add: Runyang Road No.6-620,Hangjiang District,Yangzhou,Jiangsu,China

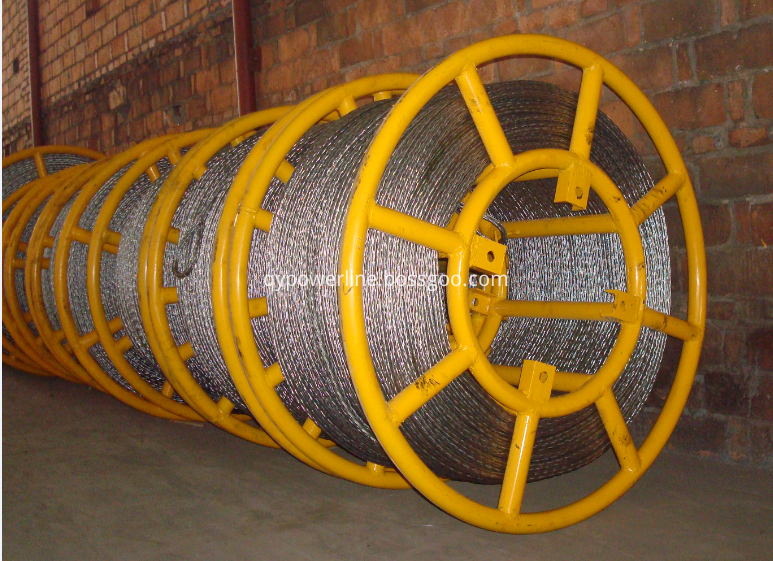

Corrosion rust-proof anti-twist steel rope
Anti-Twisting Steel Wire Rope,Anti Twist Braided String Line,Non-Rotation Steel Wire Rope,Anti-Torsion Braided Wire Rope,Pilot Wire,Pilot Rope,Anti-Twist Pilot Wire,Anti-Twisting Steel Wire,Anti-Twist Rope.
Features: Square or hexagon is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be released each other whether it receives a force or not. The moment of twisting is naught for the wire rope.
Applications:
The special non-rotating braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS, 500kv traction rope, etc.
Structural forms for wire ropes (in cross section)
1 Four-sided eight strands
2 Four-sided twelve strands
3 Six-sided twelve strands
Remarks:All kinds of non-rotating steel wire rope can be made according to the customers` requirements.
Product No | Model | Strand Structure | Nominal Dia.(mm) | Strand Dia.(mm) | Nominal Tensile Strength (Mpa) | Strand Breaking Force(KN) | Steel Rope Referenced Weight (kg/km) |
1001 | GS9-12*19W |
Six-Sided Twelve Strands | 9 | 2.0 | 1960 | 67 | 299 |
1002 | GS11-12*19W | 11 | 2.5 | 1960 | 87 | 434 | |
1003 | GS13-12*19W | 13 | 3.0 | 1960 | 125 | 632 | |
1004 | GS16-12*19W | 15 | 3.5 | 2000 | 168 | 862 | |
1005 | GS18-12*19W | 18 | 4.0 | 1960 | 205 | 1098 | |
1006 | GS20-12*25Fi | 20 | 4.2-4.5 | 1960 | 255 | 1292 | |
1007 | GS20-12*29Fi | 20 | 4.2-4.5 | 1960 | 262 | 1302 | |
1008 | GS22-12*25Fi | 22 | 4.8 | 1960 | 309 | 1558 | |
1009 | GS22-12*29Fi | 22 | 4.8 | 1960 | 345 | 1784 | |
10010 | GS24-12*25Fi | 24 | 5.0-5.2 | 1960 | 355 | 1820 | |
10011 | GS24-12*29Fi | 24 | 5.0-5.2 | 1960 | 370 | 1995 | |
10012 | GS25-12*25Fi | 25 | 5.2-5.5 | 1960 | 389 | 2158 | |
10013 | GS25-12*29Fi | 25 | 5.2-5.5 | 2160 | 425 | 2247 | |
10014 | GS26-12*25Fi | 26 | 5.5-5.6 | 1960 | 420 | 2278 | |
10015 | GS26-12*29Fi | 26 | 5.5-5.6 | 2160 | 430 | 2298 | |
10016 | GS28-12*25Fi | 28 | 6.0 | 1960 | 440 | 2308 | |
10017 | GS28-12*29Fi | 28 | 6.0 | 2160 | 490 | 2568 | |
10018 | GS30-12*25Fi | 30 | 6.5 | 1960 | 485 | 2718 | |
10019 | GS30-12*29Fi | 30 | 6.5 | 2160 | 550 | 3098 | |
10020 | GS7-8*19W | Four-Sided Eight Strands | 7 | 2.0 | 1960 | 42 | 193 |
10021 | GS9-8*19W | 9 | 2.5 | 1960 | 57 | 289 | |
10022 | GS11-8*19W | 11 | 3.0 | 1960 | 78 | 398 | |
10023 | GS13-8*19W | 13 | 3.5 | 1960 | 110 | 580 | |
10024 | GS15-8*19W | 15 | 4.0 | 1960 | 125 | 690 | |
10025 | GS18-8*25Fi | 18 | 4.8-5.0 | 1960 | 206 | 1035 | |
10026 | GS18-8*29Fi | 18 | 4.8-5.0 | 2060 | 220 | 1078 | |
10027 | GS20-8*25Fi | 20 | 5.2-5.5 | 2060 | 245 | 1200 | |
10028 | GS22-8*25Fi | 22 | 6.0 | 1960 | 304 | 1535 | |
10029 | GS9-12*19W | Four-Sided Twelve Strands | 9 | 2.0 | 1960 | 67 | 295 |
10030 | GS11-12*19W | 11 | 2.5 | 1960 | 83 | 430 | |
10031 | GS13-12*19W | 13 | 3.0 | 1960 | 125 | 630 | |
10032 | GS15-12*19W | 15 | 3.5 | 1960 | 170 | 865 | |
10033 | GS18-12*19W | 18 | 4.0 | 1960 | 198 | 1098 | |
10034 | GS20-12*25Fi | 20 | 4.2-4.5 | 1960 | 253 | 1285 | |
10035 | GS20-12*29Fi | 20 | 4.2-4.5 | 1960 | 262 | 1302 | |
10036 | GS22-12*25Fi | 22 | 4.8 | 1960 | 310 | 1555 | |
10037 | GS22-12*29Fi | 22 | 4.8-5.2 | 1960 | 318 | 1785 | |
10038 | GS24-12*25Fi | 24 | 5.0-5.2 | 1960 | 370 | 1850 | |
10039 | GS24-12*29Fi | 24 | 5.0-5.2 | 1960 | 370 | 2002 | |
10040 | GS25-12*25Fi | 25 | 5.2-5.5 | 2160 | 425 | 2161 | |
10041 | GS25-12*29Fi | 25 | 5.2-5.5 | 2160 | 430 | 2252 | |
10042 | GS26-12*25Fi | 26 | 5.5-5.6 | 1960 | 398 | 2298 | |
10043 | GS26-12*29Fi | 26 | 5.5-5.6 | 2160 | 420 | 2303 | |
10044 | GS28-12*25Fi | 28 | 6.0 | 1960 | 458 | 2312 | |
10045 | GS28-12*29Fi | 28 | 6.0 | 2160 | 486 | 2571 | |
10046 | GS30-12*25Fi | 30 | 6.5 | 1960 | 525 | 2722 | |
10047 | GS30-12*29Fi | 30 | 6.5 | 2160 | 535 | 3102 |
|
|
|
|
