Anti-twisting Steel Wire Rope
Name: Mr Frank Yu
Tel: +86-138 1318 6357
Fax: +86-0514-87261716
E-mail: frank@qypowerlinetools.com
Skype: yusong0627
QQ: 1376828576
Add: Runyang Road No.6-620,Hangjiang District,Yangzhou,Jiangsu,China

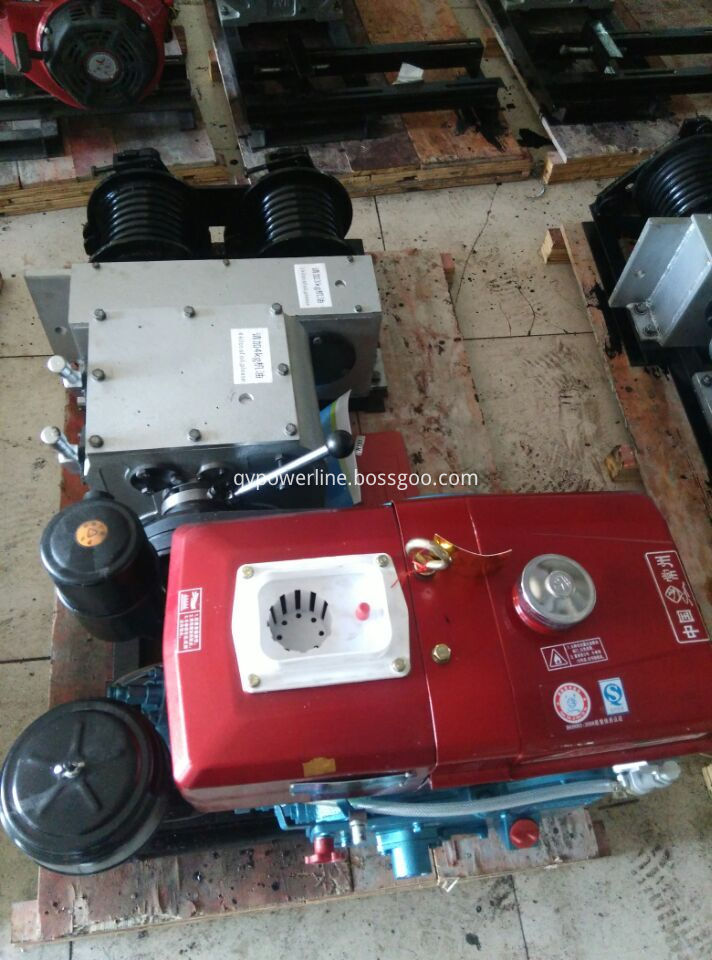

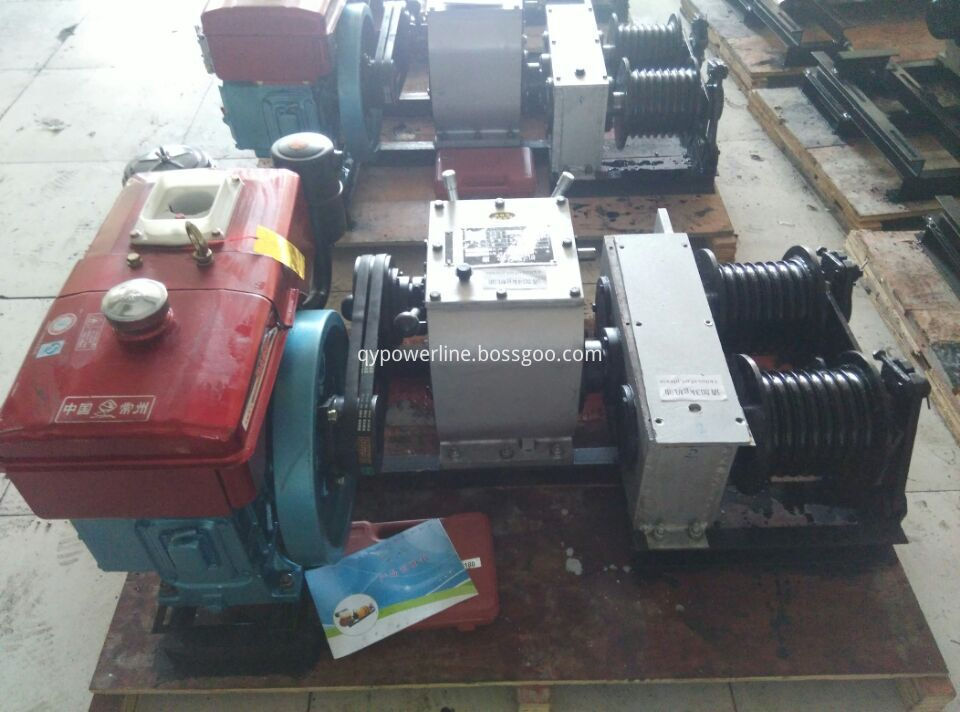

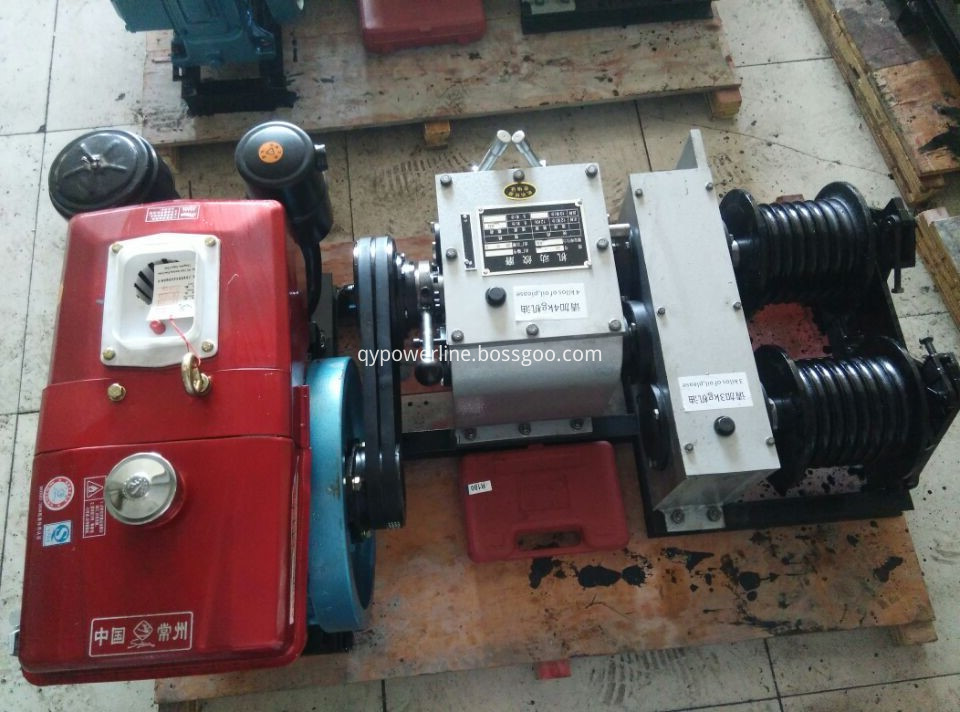

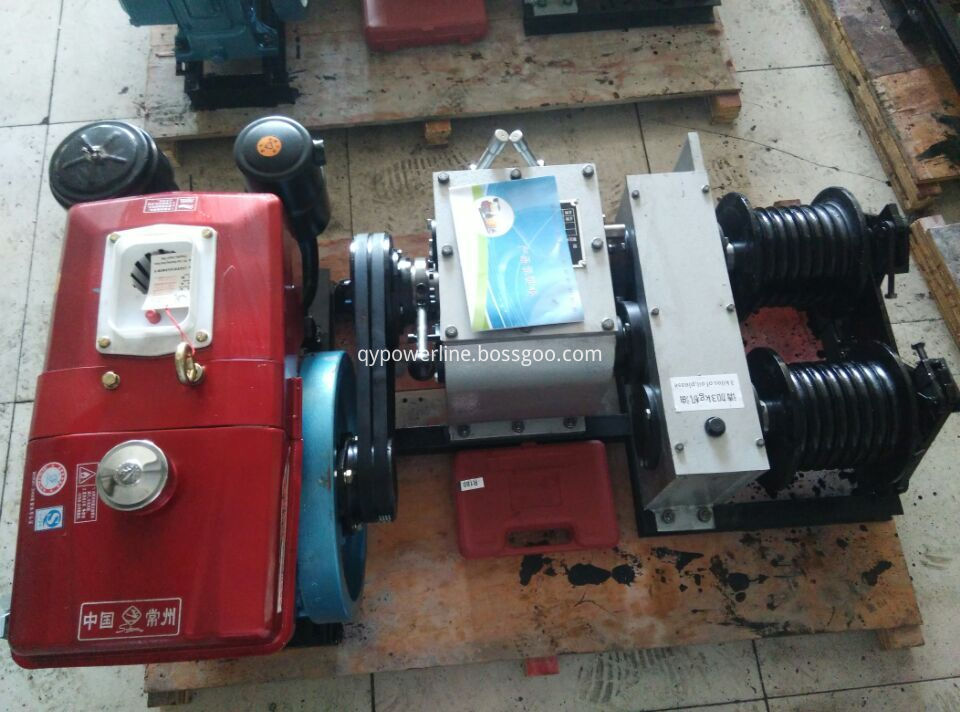

Double Drum Engine Powered Winch
Engine Powered Winch,Engine Driven Winch,Manual Winch,Hand Operated Winch,Electric Windlass,Motorized Winch,Diesel Powered Winch,Gasoline Winch,Powered Winches,Diesel Winch,Petrol Winch.
Application
Dual Drum Motorized Winch is used for tower erection, stringing in electric power line construction.
Features
1)Speedy and Efficient;
2)Safe and Reliable;
3)Compact structure;
4)Small volume;
5)Light in weight;
6)Easy operation
7)Convenient to carry
8)Good flexibility
Technical Details:
Product No. | Model | Rated Load (KN) | Orientation | Gear | Pulling Force (KN) | Drum Speed (Round /min) | Pulling Speed (m/min) | Total Weight (KG) |
1001 | GM-5D (Diesel,Double Drum), 6.6HP | 50 | Positive | Ⅰ (Slow) | 50 (5T) | 8 | 5.5 | 210 |
Ⅱ (Fast) | 23 (2.3T) | 19 | 14 | |||||
Reverse | Reverse | No Lifting | 10 | 7 |
|
|
|
|
