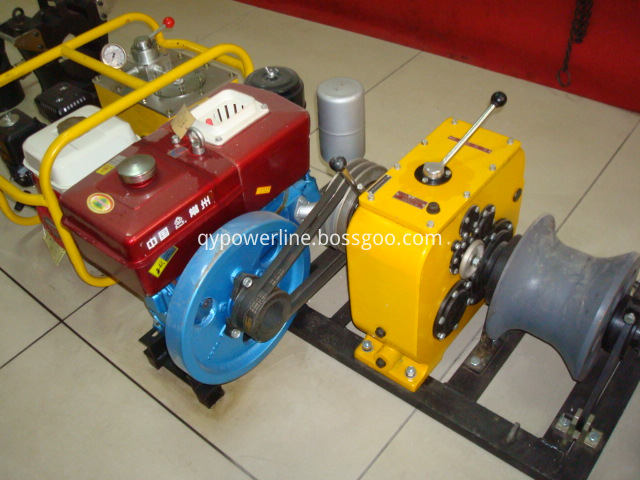

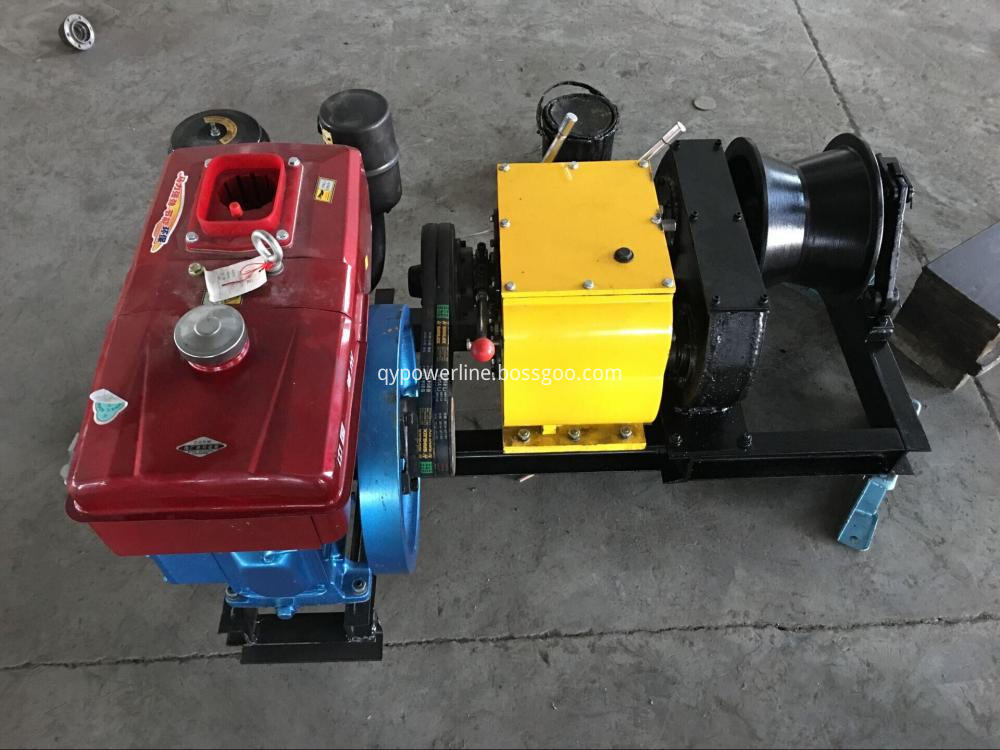

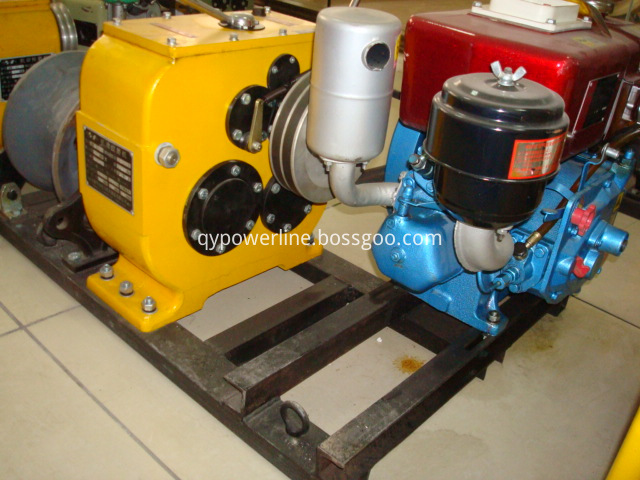

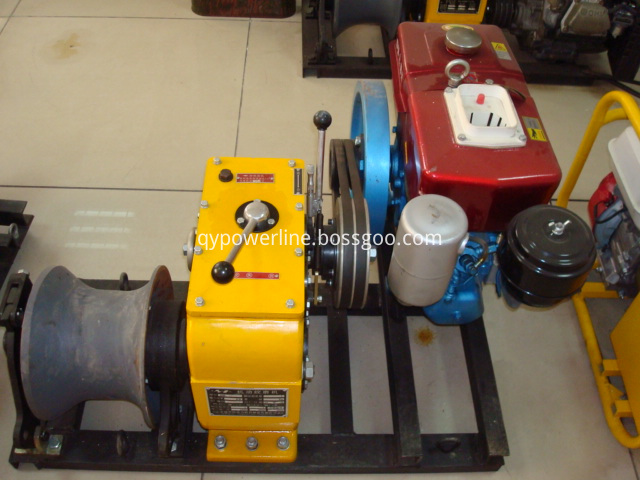

5T Diesel Engine Wire Rope Winch for Tower Erection
Engine Powered Winch,Engine Driven Winch,Manual Winch,Hand Operated Winch,Electric Windlass,Motorized Winch,Diesel Powered Winch,Gasoline Winch,Powered Winches,Diesel Winch,Petrol Winch.
Application
Supply 8 Ton Diesel Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
Features:
1.Speedy and Efficient;
2.Safe and Reliable;
3.Compact structure;
4.Small volume;
5.Light in weight;
Technical Data:
Product No. | Model | Rated Load (KN) | Orientation | Gear | Pulling Force (KN) | Pulling Speed (m/min) | Total Weight (KG) |
10052 | GM-1P (Petrol) | 10 | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 50 |
Ⅱ(Fast) | 6(0.6T) | 18 | |||||
Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
Ⅱ(Fast) | 18 | ||||||
10053 | GM-1E (Electric) | Positive | Ⅰ(Slow) | 8(0.8T) | 12 | 55 | |
Ⅱ(Fast) | 6(0.6T) | 18 | |||||
Reverse | Ⅰ(Slow) | No Lifting | 12 | ||||
Ⅱ(Fast) | 18 | ||||||
10054 | GM-3P (Petrol) | 30 | Positive | Ⅰ(Slow) | 30(3T) | 4 | 85 |
Ⅱ(Fast) | 18(1.8T) | 7 | |||||
Reverse | Reverse | No Lifting | 3.5 | ||||
10055 | GM-3D (Diesel) | Positive | Ⅰ(Slow) | 30(3T) | 5 | 100 | |
Ⅱ(Fast) | 18(1.8T) | 9 | |||||
Reverse | Reverse | No Lifting | 4.5 | ||||
10056 | GM-3E (Electric) | Positive | Ⅰ(Slow) | 30(3T) | 4 | 90 | |
Ⅱ(Fast) | 18(1.8T) | 7 | |||||
Reverse | Ⅰ(Slow) | No Lifting | 4 | ||||
Ⅱ(Fast) | 7 | ||||||
10057 | GM-5P (Petrol) | 50 | Positive | Ⅰ(Slow) | 50(5T) | 4.5 | 150 |
Ⅱ(Fast) | 23(2.3T) | 10 | |||||
Reverse | Reverse | No Lifting | 4.5 | ||||
10058 | GM-5D (Diesel) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 170 | |
Ⅱ(Fast) | 23(2.3T) | 14 | |||||
Reverse | Reverse | No Lifting | 7 | ||||
10059 | GM-5E (Electric) | Positive | Ⅰ(Slow) | 50(5T) | 5.5 | 155 | |
Ⅱ(Fast) | 23(2.3T) | 14 | |||||
Reverse | Ⅰ(Slow) | No Lifting | 5.5 | ||||
Ⅱ(Fast) | 14 |
|
|
|
|
